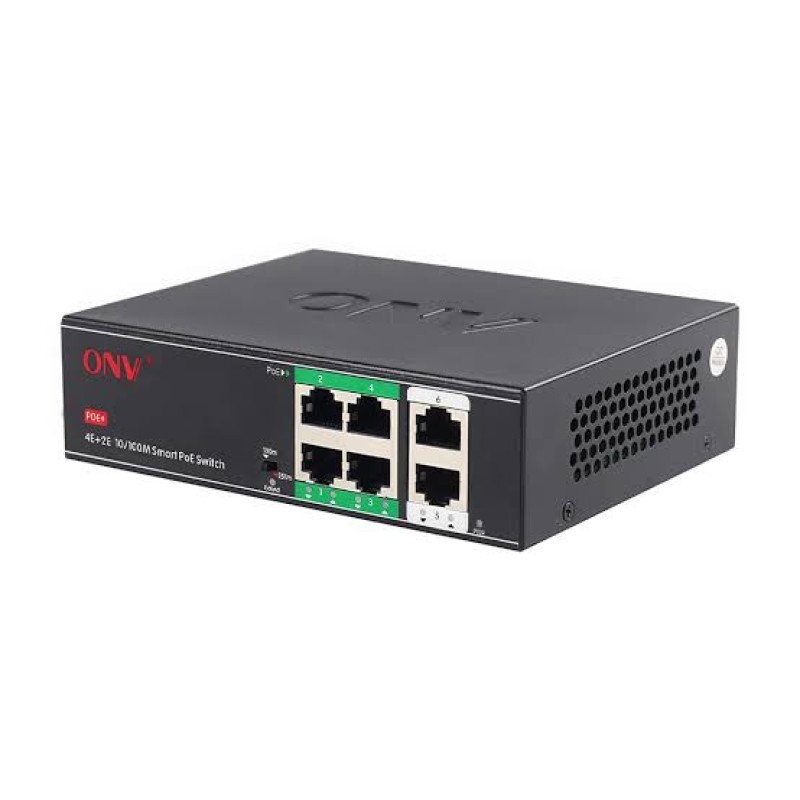

ONV-H1064PLS PoE Switch (4-Port 100Mbps + 2 Uplink, 65W)

• Port Configuration: 4 x 10/100M RJ45 PoE ports and 2 x 10/100M RJ45 Uplink ports.

• PoE Standards: IEEE 802.3af / IEEE 802.3at (up to 30W per individual PoE port).

• Total PoE Power Budget: Built-in power supply providing 60W – 65W total power.

• Transmission Distance / Modes:

  • Standard Mode: Up to 100 meters at 100Mbps on all ports.

  • Extend Mode: Up to 250 meters at 10Mbps with port isolation for ports 1–4.

• Power Input: Built-in power supply unit, AC 100–240V, 50-60Hz.

• Switch Bandwidth: 1.6 Gbps.

• Operating Temperature: -20°C to +55°C (-4°F to 131°F).
